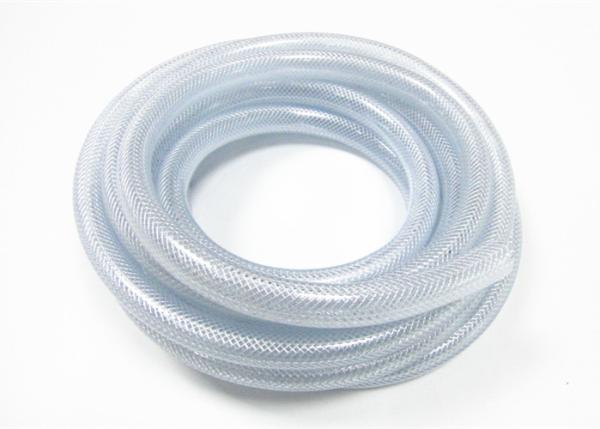

PVC Clear Braided Hose, Chemical Flexible Fiber Reinforced Water Hose Oil Resistant
| product name | pvc nylon braided hose pipe |
| temperature range | -5℃ to 65℃ |
| color | blue, green, orange, blue, black etc. |
| standard | ISO; SGS |
| feature | clear, flexible, high pressure, oil resistant |
| application | used in agricultural irrigation, construction, civil |
| features | UV resistant,self-extinguishing, non-marking |
| MOQ | 1000m |
1. The appearance of the tube is beautiful, smooth, clear, bright, and can be printed symbol lines with different colors.
2. High quality and low price, beautiful and convenient. It can be applied normally in different environments, and has standardized application effect and application advantages.
3. Corrosion resistance, high temperature resistance, wear resistance, tensile strength, etc. The pipeline has obvious characteristics of corrosion resistance, high temperature resistance and external pressure resistance. It can be used in municipal, telecommunications and other industries with high safety performance.
4. Adopting environmentally friendly raw materials and applying advanced equipment and technology to ensure product quality and extend service life.
5. we supply OEM/ODM service. The inner diameter, outer diameter, length, color, hardness and pressure of the hose can be customized according to the requirements of customers.
Specification:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length |
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/8 | 4 | 0.078 | 2.0 | 0.051 | 12 | 175 | 100 | 300 |
| 13/64 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 |
| 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 |
| 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 |
| 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 |
| 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 |
| 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 |
| 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 |
| 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 |
| 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 |
| 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 |
| 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 |
| 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 |
| 3 | 76 | 0.315 | 8 | 2.750 | 4 | 60 | 50 | 150 |
