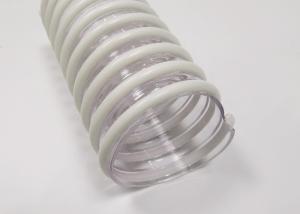

Flexible White Smooth PVC Suction Hose Drainage Hose With Large Diameter

Brand Name : ET

Model Number : PVC suction hose

Certification : ISO9001:2008,SGS,ROHS

Place of Origin : Shandong, China

MOQ : 1000m

Price : $0.03-$5 / meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500tons / month

Delivery Time : 10-15 work days

Packaging Details : transparent plastic film wrapped

Color : Blue, Red, Orange, White, Black, Yellow, Green, Grey

Work Pressure : 2-6bar

Inner Diameter : 19-408mm

Thickness : 6-24mm

Type : pvc vacuum suction hose

Features : abrasion and chemical resistant, impact and crush resistant, smooth inner construction

Contact Now

Flexible Large Diameter White Smooth PVC Suction Drainage Hose

Name	Corrugated suction hose / pvc vacuum suction hose
Color	Blue, red, orange, white, black, yellow, green, grey or oem
Length	10m, 20m, 30m, 50m/roll or oem
Working pressure	2bar - 6bar
Temperature Range	-5℃ to +65℃

Application:
1. Indoor exhaust, air conditioning unit
2. Civil machine, technical grinding machine, vacuuming
3. Coal mines, mine pits, exhaust
4. The hose of the textile machine
5. Delivery of powder, gas, liquid, granules
6. Furniture, woodworking dust collection construction
7. Cleaning the hose

PVC suction hose, also known as PVC corrugated hose, spiral hose, etc. They are mostly made of rigid PVC plastic ribs made of a wear-resistant PVC material with a smooth inner wall that allows the material to flow smoothly inside the hose and has excellent wear resistance. It has high flexibility and maintains good flexibility even in relatively low temperature environments. PVC suction hose can be safely used in the food and pharmaceutical industries. In practical applications, PVC suction hose have light, heavy and overweight points to meet the requirements of different materials transportation. It can be used in food processing, pharmaceutical, woodworking, textile industry, ceramic industry, mining, etc. It can transport abrasive materials to meet the requirements of high wear resistance, high hardness and high softness.

Specification:

Inner Diameter		Outer Diameter		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
3/4	19	0.945	24	0.25	6	90	50	150
1	25	1.181	30	0.33	6	90	50	150
1-1/4	32	1.457	37	0.38	6	90	50	150
1-1/2	38	1.732	44	0.58	6	90	50	150
2	51	2.284	58	0.82	5	75	50	150
2-1/2	64	2.835	72	1.17	5	75	30	90
3	76	3.307	84	1.40	4	60	30	90
4	102	4.488	114	2.70	4	60	30	90
5	127	5.512	140	3.60	4	60	30	90
6	153	6.575	167	5.00	3	45	20	60
8	203	8.543	217	6.25	3	45	10	30
10	254	10.787	270	10.00	2	30	10	30
12	305	12.953	329	18.00	2	30	10	30
14	358	15.039	382	20.00	2	30	50	150
16	408	17.008	432	23.00	2	30	50	150
